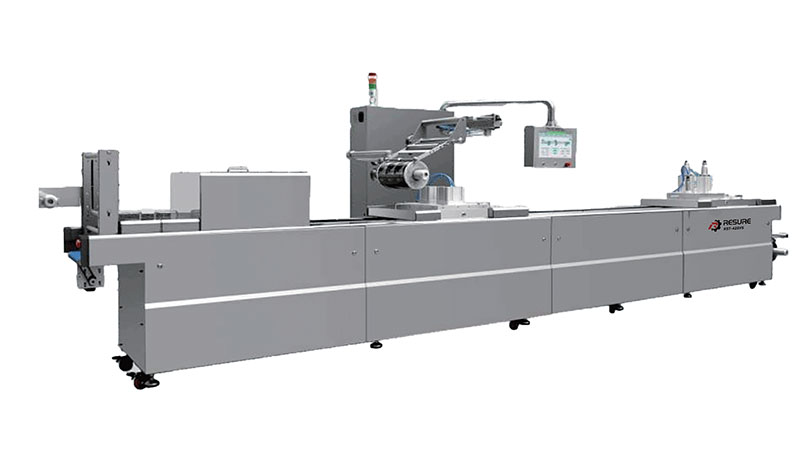

RST-VS425 Thermoforming Machine of Vacuum Skin
Packaging Effect
Products Categories
Get A Free Quote
RST-VS425 Thermoforming Machine Data Sheet
| Model | RST-425VS |
| Height of Loading Area (mm) | 950 |
| Length of Loading Area (mm) | 2000 ~ 2500（Extendable） |
| Upper Film Width (mm) | 420~422 |
| Upper Film Outer Diameter(mm) | ≤300 |
| Lower Film Width (mm) | 422~424 |
| Lower Film Outer Diameter(mm) | ≤350 |
| Max. Forming Depth(mm) | 80 |
| Packing Speed(steps/min) | 6~10 |
| Froming Temp（℃) | 90~120 |
| Seling Temp（℃） | 125~160 |
| Power Supply (V/Hz) | 380/50 |
| Water Supply | 0.15~0.45 MPa，Temperature：10~15℃ Clean and free of impurities |
| Air Pressure（MPa） | 0.6~0.8 |
| Total Power (kW) | 18~20 |
| Vacuum Pump Displacement (m³/h) | 200 |
| Dimensions (mm) | 6660x1110x2150 |
